適用場所 Use arear
計算機房、程控機房、電算化教室、有防塵防靜電及需要架空的場合。
Computer rooms , programmed control equipment rooms , electrical controlled classrooms , places that have requirements of dust-proof , anti-static and fields with raised requirements.
特點 Characteristics
1.全鋼組合結構，高強度，耐沖擊能力強；
2.尺寸精度高，互換性好；
3.地板可任意切割，安裝附件方便；
4.表面靜電噴塑處理，耐腐蝕性能佳；
5.防火、防靜電、防塵；
6.四周固定，安裝方便；
7.下部空間可作為空調通風用；
8.對超重設備而言，只要在地板下增加支架，就能解決承載問題；
9.拆裝方便，只要更換裝飾貼面，就能反復使用。
1. All steel assembly structure with high strength , strong anti-impact ability;
2. High precision of dimensions , good interchange ability;
3. Floor can be out willfully , and the installation of is accessories is very convenient;
4. Surface is treated with static electricity plastic painting , good performance for anti-corrosion , long term for use;
5. Fire-proof , water-proof and dust-proof;
6. Four corners are fixed . Its installation is very convenient.
7. Underpart space can be used for air-conditioning ventilation;
8. With regard to bearing loads of excessive heavy equipment , the loading problem can be solved by adding pedestal under the floor.
9. Convenient work for both dismantling and assembling . It can be reused by replacing its decoration covers.
工藝特點：
抗靜電高架活動地板系列，其基礎材質均為合金鋼板，面板經脫脂、磷化防銹處理，再施以環氧樹脂粉末靜電噴涂處理，腔充填輕質發泡水泥，地板背面為圓杯拉伸一體成型，四邊采用先進的鉚接補強結構，所以承載及抗彎曲性均十分優異。
HDG防靜電全鋼高架活動地板技術參數（AS600系列）
HDG antistatic all-steel raised floor technology parameter (AS600 Series)
型號
規格
mm
集中荷載 擾度=2mm
均勻荷載N/m^2
極限荷載N
系統電阻Ω
International
國標
Ib
N
Kg
AS450
HDG600 30COD
600X600X30
≥450
≥1960
≥200
≥8850
≥5900
1x10^6~1x10^10
AS680
HDG600 30OD
600X600X30
≥680
≥2950
≥300
≥12500
≥8250
HDG600 35OD
600X600X35
HDG610 35OD
610X610X35
AS800
HDG600 30OD
600X600X30
≥800
≥3550
≥360
≥15000
≥10650
HDG610 35OD
610X610X35
AS1000
HDG600 35BD
600X600X35
≥1000
≥4450
≥450
≥23000
≥13350
HDG610 35BD
610X610X35
AS1250
HDG600 35ZD
600X600X35
≥1250
≥5560
≥568
≥33000
16680
HDG610 35ZD
610X610X35
注：
1.活動地板高度可任意選擇。
2.表面防靜電裝飾面有國產、合資及進口高耐磨三聚氰胺貼面、PVC貼面、陶瓷貼面、大理石貼面等。
3.支架承載能力不低于20KN，并與各型號活動地板匹配。
Note:
1. The activities of laying on the floor height can be arbitrarily chosen .
2. Surface anti-static decorative are domestic , joint venture and imported high abrasion-proof melamine veneer , PVC ceramics marble veneer.
3.Supporting capacity of not less than 20KN , and various types of movable floor matching.
施工工藝：
施工步驟
示意圖
1.清潔地面
2.畫網格線
3.放置支架
4.調整水平
5.橫梁連接
6.安裝地板
7.封邊
8.清潔地板表面
封邊類型：
直角型收邊
斜坡型收邊
階梯型收邊

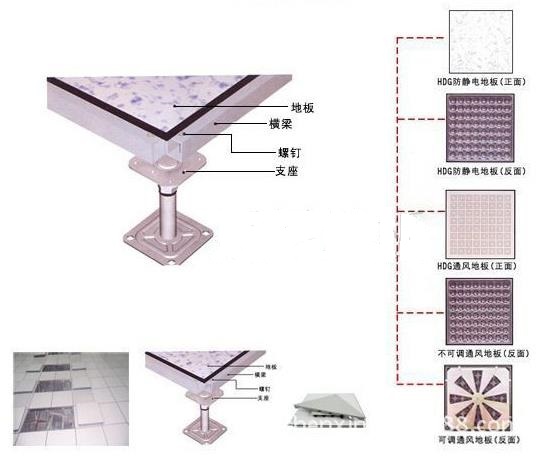

全鋼高架防靜電地板剖面圖：
